Brand New key ignition

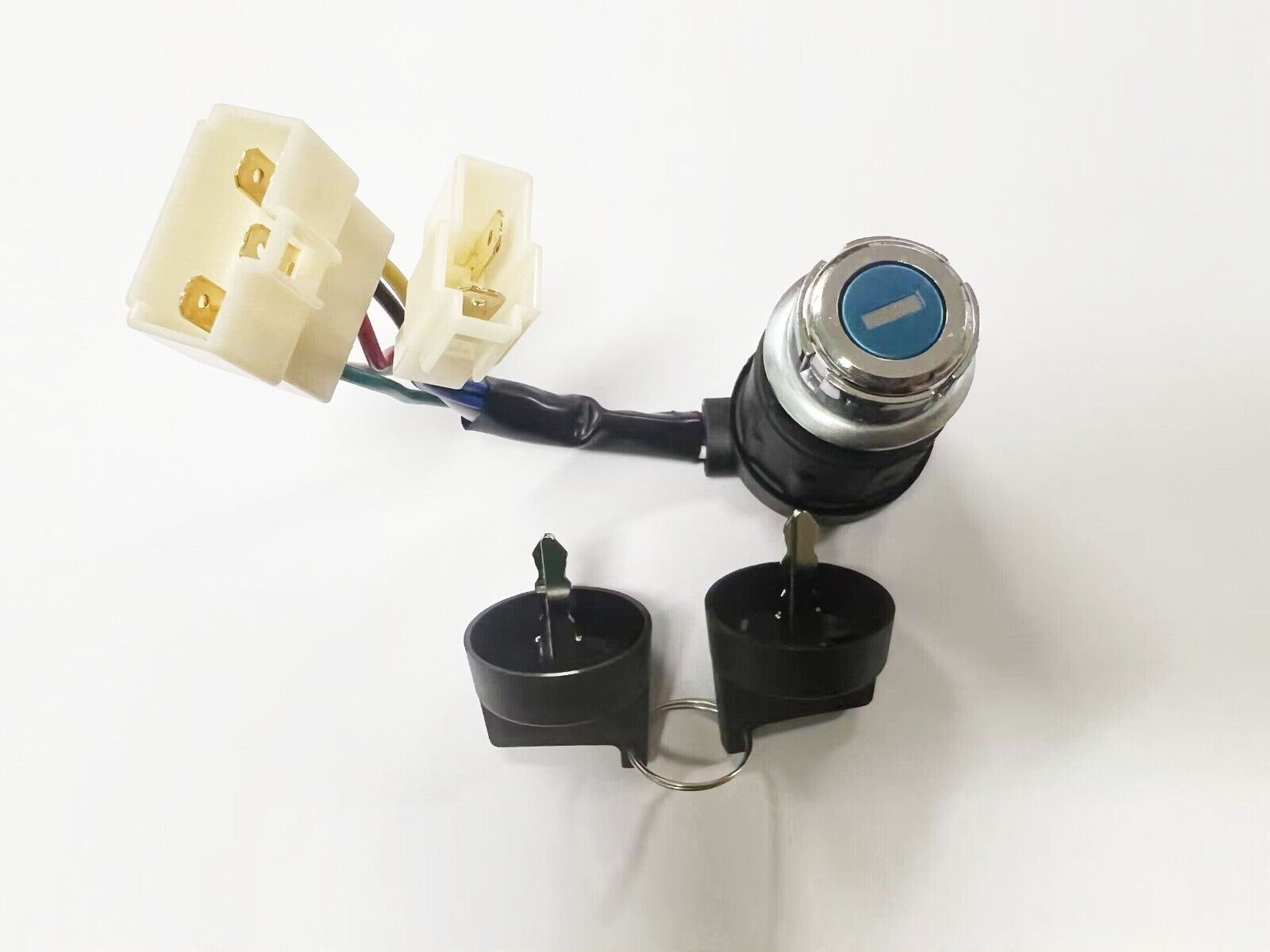

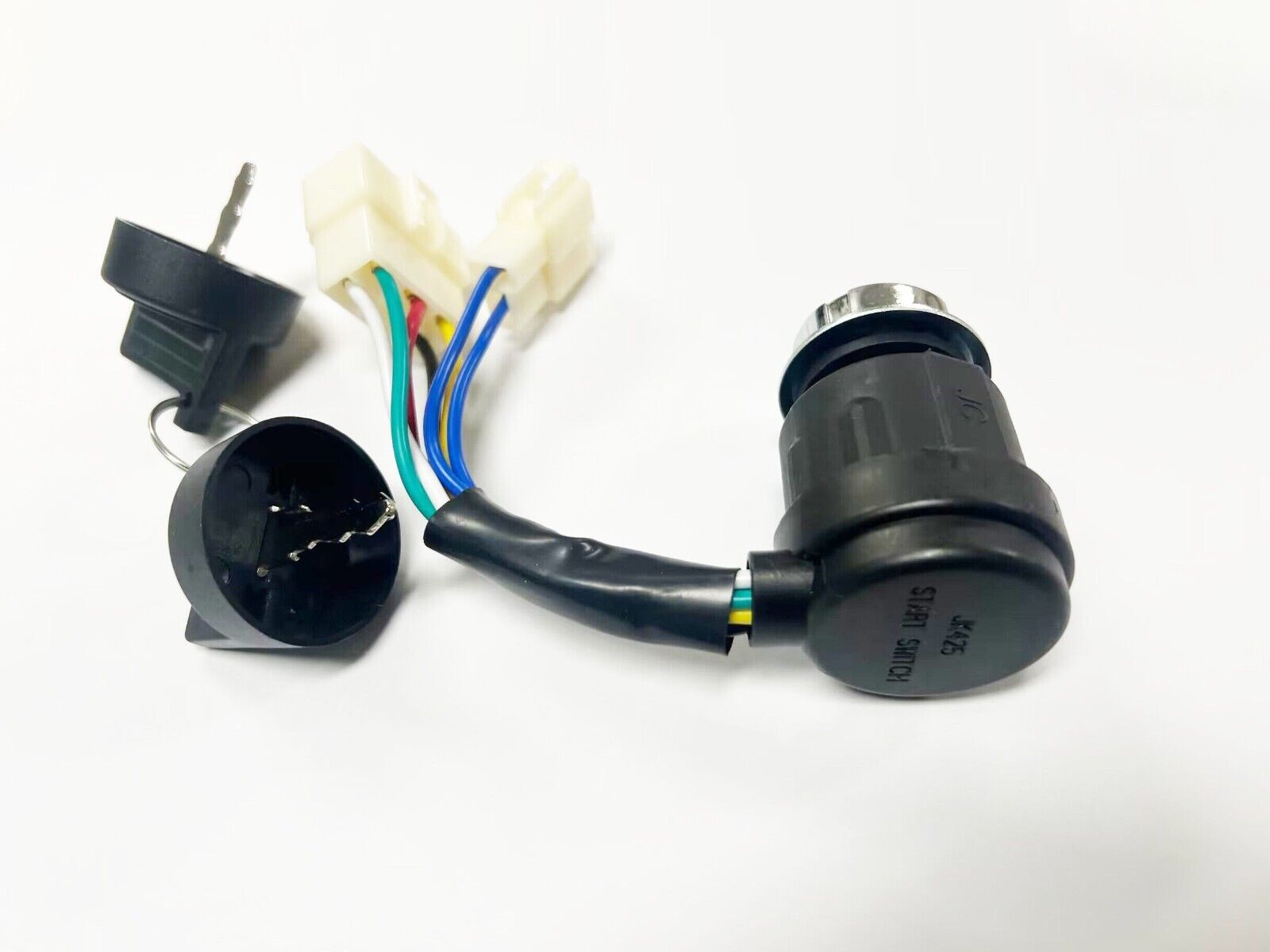

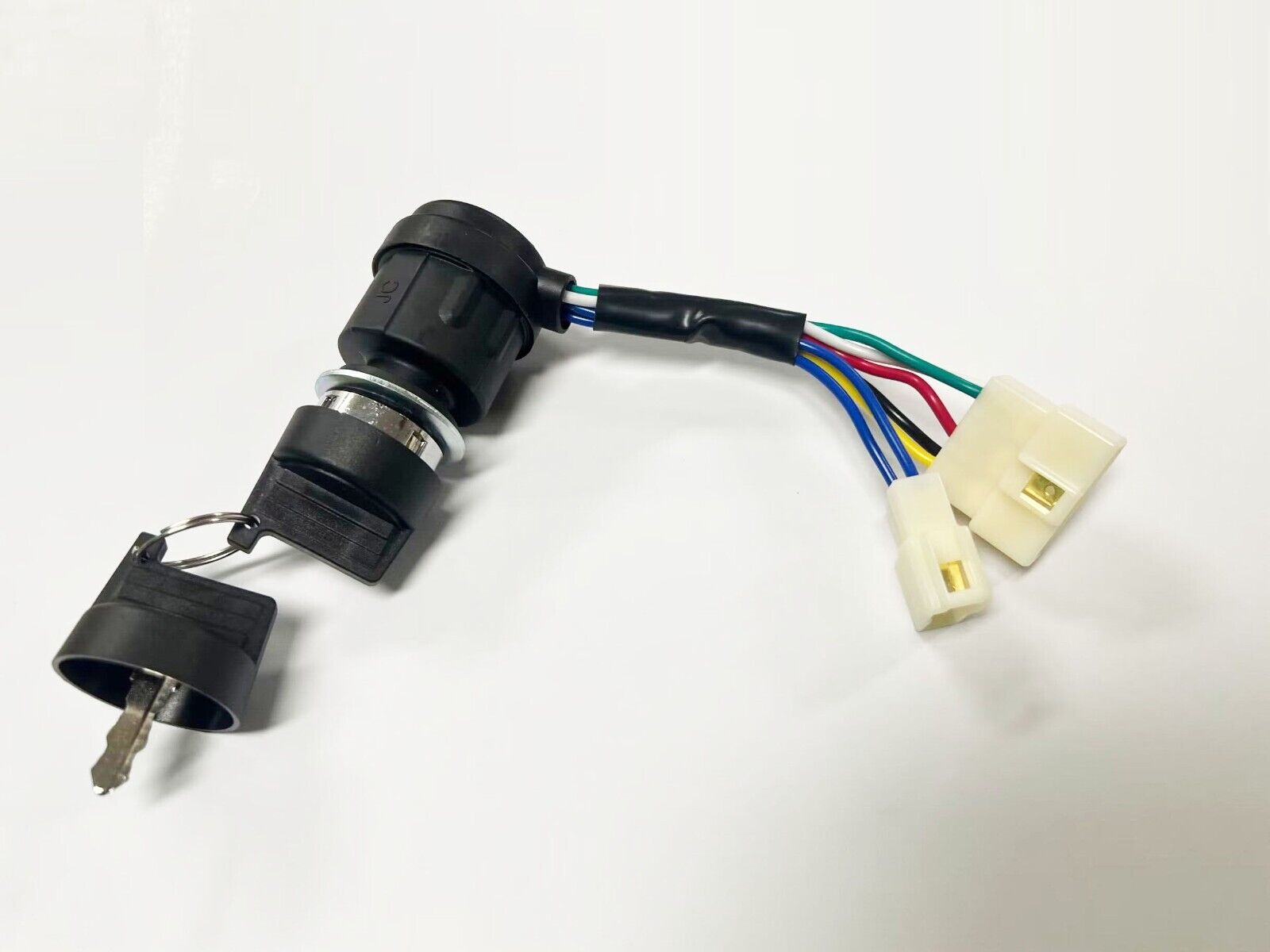

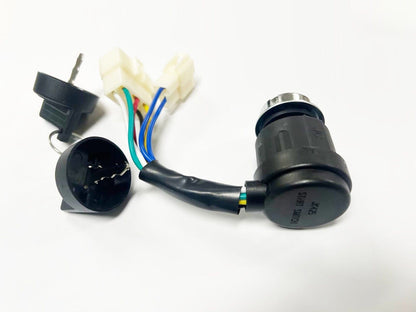

7-wire/pin starter ignition key switch assembly for
China-made Yanmar Style portable gasoline generators (it looks like a
diesel generator from its appearance.) with 168F(163CC/5.5HP or
196CC/6.5HP), 170F(208CC/211CC/212CC/7HP), 173F(242CC/8HP), 177F(270CC/9HP),
182F(337CC/338CC/11HP), 188F(389CC/396CC/401CC/13HP/14HP/15HP/16HP) or
190F(407CC/414CC/420CC/13HP/14HP/15HP/16HP) Gasoline Engine.

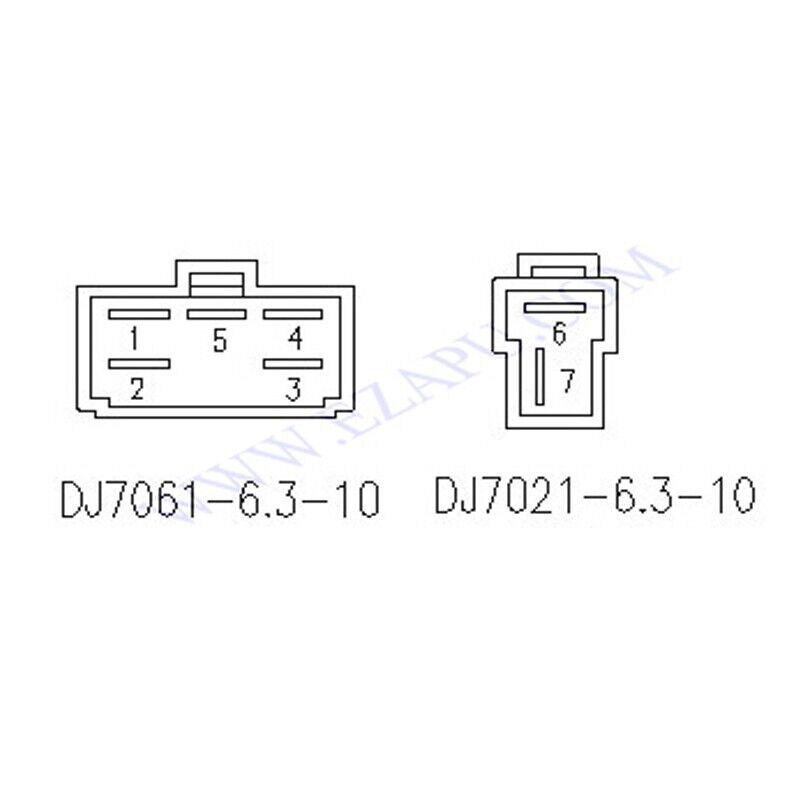

1: to be grounded.
2: to ignition coil and oil sensor diode.
3: to the electric contact pole of a starter motor
solenoid/positive terminal of a 12V DC Battery.
4: to charging coil/ the positive pole of a 12V Power Source
on control panel .
5: to the terminal pin of a starter motor solenoid/relay.
6: to positive terminal of 12VDC power source on control
panel.
7: to positive terminal of carburetor solenoid.
Special Note:

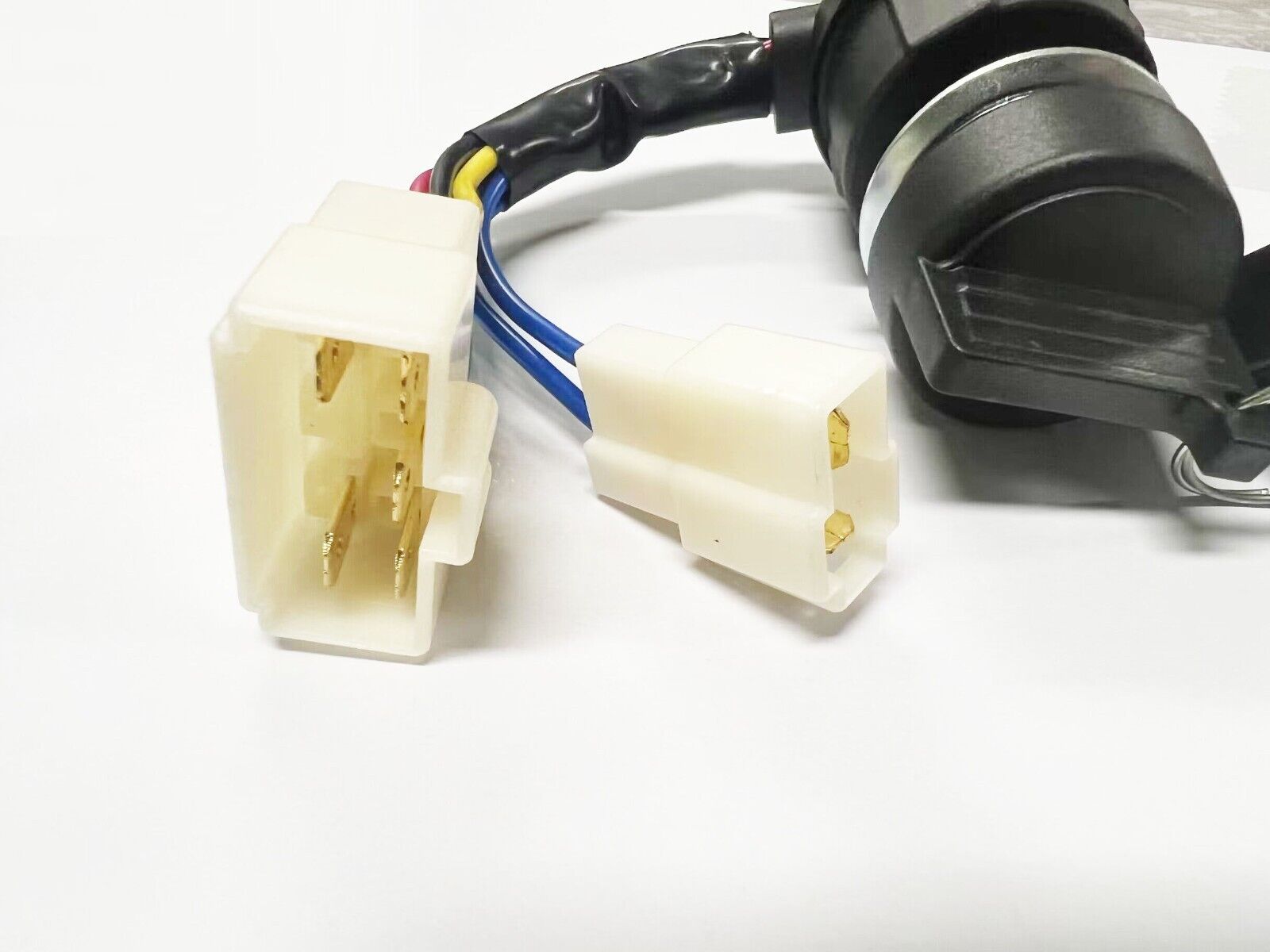

1) Different color wires and connectors may be used in your generator, e.g., a
single 8-hole connector may be used in your generator instead of one 6-hole and
one 2-hole connectors.
2) If one of two leads in your carburetor solenoid is directly grounded, please
follow the above wiring instructions on # 6 &7; otherwise, if one of
two leads in your carburetor solenoid is directly connected to the positive terminal
of 12VDC power source on your control panel, you need to connect # 6 & 7 as
below:
6: to negative terminal of 12VDC power source on
control panel.
7: to negative terminal of carburetor solenoid. |
